SPECIFICHE

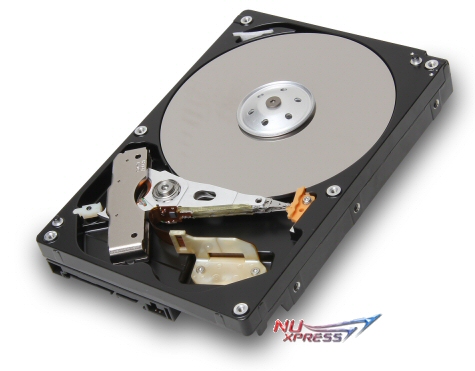

Model DT01ACA200
Features Formatted capacity 2000 GByte
Form factor 3.5 inch
Interface type Serial ATA
Supported interface standards ATA-8 Serial ATA 3.0
S.M.A.R.T. The SMART command set is supported.
Physical parameters
Bytes/sector (Host) 512
Bytes/sector (Disk) 4096 kByte
Access times
Single track seek time (read) 0.5 ms
Single track seek time (write) 0.6 ms
Transfer rates
SATA (Host) max. 6.0 Gbit/s
Rotational speed 7,200 rpm
Buffer size 64 MByte
Reliability specifications
Load/Unload 300,000 Times
Non-recoverable error rate 1 error per 1014 read
Power consumption
Read (Random) 6.4 W
Write (Random) 6.4 W
Idle 5.2 W
Stand-by 1.0 W
Sleep 1.0 W
Energy consumption efficiency/Category 0.0026/B
Power supply
Allowable voltage +5 VDC (+/- 5 %)
+12 VDC (+/- 10 %)
Mechanical specifications
Drive width 101.6 mm
Drive height 26.1 mm
Drive depth 147 mm
Drive weight (max.) 0.680 kg
Temperature
Operating From 0 °C to 60 °C
Non-operating From -40 °C to 70 °C
Vibration
Operating 0.67 G, with 5 - 500 Hz
Non-operating (Maximum) 1.04 G, with 2 - 200 Hz
Shock
Operating 70 G, with 2 ms half sine wave
Non-operating (Maximum) 300 G, with 2 ms half sine wave
Acoustic noise
Idle (typ.) 27 dB
Seek 28 dB
