SPECIFICHE

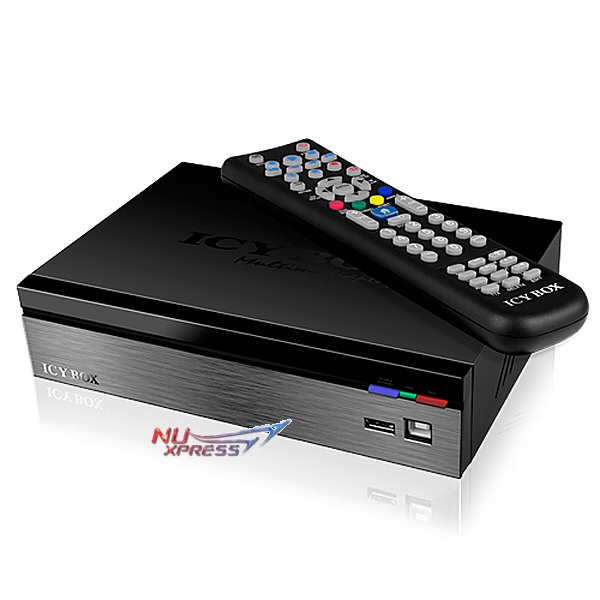

Model: IB-MP3012DVB-T
Article No.: 25313
EAN Code: 4250078184249
Brand: ICY BOX
Category: Mediaplayer
Material: Metal/plastic
Colour: Black
HDD size (inch): 3.5"
Processor: Realtek RTD1283
Network support: LAN 10/100 Mbps, RJ-45, WLAN up to WiFi iEEE802.11n (optional WiFi USB dongle required)
Network protocol: SAMBA (SMB), UPnP
Web support: BT Unterstützung, RSS Feeds (i.e Flickr, Picasa, News, Weather)
File system: NTFS/ FAT32
HDD interface: 1x 3.5" SATA up to 2 TB
External data interface: 2x USB 2.0 Host, 1x USB 2.0 Device
External video interface: Composite out, Component out, HDMI 1.3a out, A/V in (mini jack) Antenna in
External audio interface: Stereo L/R, SPDIF (optical/coaxial)
Video formats: AVI/MKV/TS/M2TS/MPG/MP4/MOV/VOB/ISO/
IFO/DAT/WMV/RM/RMVB,
FLV resolution up to 720p/1080i/1080p
Analog Recording
•Resolution: NTSC/PAL
•Record Quality: HQ, SP, LP, EP, SLP
•Function: Timer recording, One Touch Recording, Timeshifting
DTV
•System: DVB-T 170~230, 470~862 MHz
•Bandwidth: 6/7/8 MHz
•Modulation: QPSK, 16QAM, 64QAM
•Sensitivity: -75 +/-1 dBm
•Function: EPG, Teletext
•Record: Timer recording, One Touch Recording, Timeshifting
Audio formats:
MP3/OGG Vorbis/WMA/WAV/ASF,
AAC, MP4, M3U (Playlist)
Picture formats:
HD-JPEG, JPG, BMP, PNG, GIF, TIF, TIFF
Subtitle formats:
SRT, SMI, SSA, SUB, ASS, IDX+SUB
Subtitle codes:
UNICODE (UTF8), Western, Turkish, Central European, Greek, Cyrillic, SE European, Traditional Chinese (BIG5), Simple Chinese (GBK)
Language support:
German, English, Italian, Dutch, Russian, Chinese, French, Spanish, Portuguese
Power connector:
Wall power supply: AC 100-240 V, 50-60 Hz, 0.7 A, DC 12 V, 2 A
Packing content:
1x IB-MP3012DVB-T, 1x wall power supply, 1x A/V cable (mini jack to chinch), 1x Audio cable (chinch), 1x remote controll, 2x remote batteries (AAA), 1x quick installation guide (English), 1x user manual (English)
Net weight: 0.8 kg
Dimension of article: 205x54x150 mm
