SPECIFICHE
Standards
IEEE 802.11b/g/n
Chipset
Realtek® 8192SE
Interface
PCI-E (x1 PCI Express Slot)
LED
2 (Link, ACT)
WPS
Yes (Software)*
Antenna
2dBi dipole antenna with R-SMA connector
Frequency Band
2412 ~ 2472 MHz
Radio Technology
• IEEE 802.11g/n: Orthogonal Frequency Division Multiplexing (OFDM)
• IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)
Modulations Scheme
DBPSK/DQPSK/CCK/OFDM
Media Access Protocol
CSMA/CA with ACK
Transmission Rate
Up to 150Mbps (auto-sense with auto fallback)
Security
64/128-bit WEP, WPA-PSK, WPA2-PSK
Transmitting Power
802.11b/g/n: up to 15 ± 1 dBm
Receiver Sensitivity
• 802.11b (11Mbps): -85dBm @8% PER
• 802.11g (54Mbps): -74dBm @10% PER
• 802.11n (150Mbps): -68dBm @10% PER
Number of Operational Channel
Europe (13)
Range Coverage
• Indoor: up to 100 meters
• Outdoor: up to 300 meters
Supported OS
• MS Windows® VISTA (32/64-bit)
• MS Windows® XP (32/64-bit)
• MS Windows® 2000 (SP4 required)
• MS Windows® 7 (32/64-bit)
• Linux Kernel 2.6.18
Certifications CE
(Europe)
Dimensions (mm)
70 x 48 x 2 (PCB)
Temperature Range
Operation: 0°C ~ 40°C
Storage: -10°C ~ 60°C
Humidity
10% ~ 75% (non Condensing)
Continuos Current Consumption
220mA (Tx), 380mA (Rx)
System Requirements
• Desktop computer with an available 64-bit PCI Express slot
• Intel® Pentium®III 600Mhz or compatible processor with 512MB RAM
• Windows® 2000/XP/Vista/7 or Linux operating system
• Minimum 45 Mbytes free disk space for installing the driver and utilities
• CD-Rom drive
Package Contents

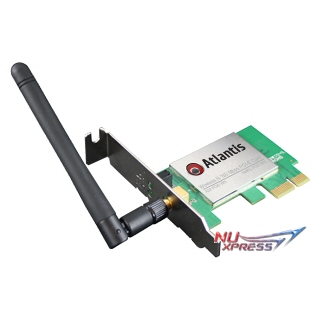

• NetFly PCIE Wireless Card
• 2 dBi Antenna
• Quick Start Guide (English, French and Italian)
• CD-Rom with Utility, Driver and Manual (English, French and Italian)
• 1 x Warranty Card and 1 x WEEE Card
