SPECIFICHE

CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor
Supports Intel® Turbo Boost Technology

Chipset
Intel® X58 /ICH10R

System Bus
Up to 6400 MT/s ; Intel® QuickPath Interconnect

Memory
6 x DIMM, Max. 24 GB, DDR3 1866/1800/1600/1333/1066 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots
2 x PCIe 2.0 x16 (dual at x16/x16 mode)
1 x PCIe x16 (at x4 mode)
2 x PCIe x1
1 x PCI

Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports ATI® Quad-GPU CrossFireX™ Technology

Storage
Intel ICH10R controller
6 xSATA 3.0 Gb/s ports (black)
Intel Matrix Storage Technology Support RAID 0,1,5,10
Marvell® 9128 PCIe SATA6Gb/s controller
2 xSATA 6Gb/s ports (gray)
Supports EZ Backup and SuperSpeed functions
JMicron® JMB362 SATA controller:
1 xPower eSATA 3Gb/s port (SATA On-the-Go)
1 xeSATA 3Gb/s port (SATA On-the-Go)

LAN
Realtek® 8110SC Gigabit LAN controller featuring AI NET2

Audio
Realtek® ALC892 8-Channel High Definition Audio CODEC
ASUS Noise Filter
Supports 192khz/24bit BD Lossless Sound
Supports Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking
Optical S/PDIF Out port at back I/O

IEEE 1394
VIA® VT6308P controller supports  2  x 1394a port(s)  (one at midboard; one at back panel)
USB NEC® USB 3.0 controller
- 2 x USB 3.0/2.0 ports (blue, at back panel)
Intel® ICH10R Southbridge
- 12 x USB 2.0/1.1 ports (6 ports at midboard, 6 ports at back panel)

ASUS Unique Features
"TUF ENGINE!" Power Design
- 8-phase CPU Power
- 2-phase Memory Power
- 2-phase VTT_CPU Power
- E.S.P. : Efficient Switching Power Design
- TUF Components (Alloy Choke, Cap. & MOSFET; certified by military-standard)
"Ultimate COOL!" Thermal Solutions
- CeraM!X Heatsink Coating Tech.
- ASUS Fan Xpert
"Safe & Stable!" Guardian Angel
- MemOK!

Special Features
Multi-language BIOS
ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS Q-Connector
ASUS O.C. Profile
ASUS Q-DIMM
ASUS Q-Slot
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Shield
True USB 3.0 support
True SATA 6Gb/s RAID support

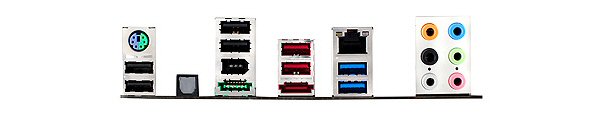

Back Panel
I/O Ports  1 x PS/2 Keyboard/Mouse Combo port
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
2 x USB 3.0/2.0 ports (blue)
1 x Power eSATA 3Gb/s port (green)
1 x eSATA 3Gb/s port (red)

Internal I/O Connectors
3 x USB connectors support additional 6 USB 2.0/1.1 ports
1 x IEEE 1394a connector
1 x Power Fan connector
1 x S/PDIF Out connector
Front panel audio connector
COM connector
System Panel (Q-Connector)
2 x SATA 6Gb/s connectors (gray)
6 x SATA 3Gb/s connectors (black)
1 x CPU Fan connector (4-pin)
1 x NB Fan connector
3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
24-pin ATX Power connector
8-pin ATX 12V Power connector
1 x MemOK! button

BIOS
16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a,

Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Accessories
User's manual
SLI bridge
2 in 1 Q-connector
2 x SATA 6Gb/s cables
2 x SATA 3Gb/s cables
ASUS Q-Shield
Support Disc Drivers
ASUS PC Probe
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities

Form Factor
ATX Form Factor 30.5 cm x 24.4 cm
