High speed DSL modem, NAT router and wireless access point in one device provides one-stop networking solution
-
Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like online gaming , VoIP and even the HD video streaming
-
Support up to 10 IPSec VPN tunnels simultaneously
-
QoS enables smooth VoIP/IPTV streaming and lag-free online gaming
-
WPA/WPA2 encryptions provide your network with active defense against security threats
-
SPI and NAT firewall protects end-user devices from potential attacks across the Internet
-
Easy Setup Assistant provides quick & hassle free installation
-
Supports IP address filtering, MAC address filtering and parental control ,DHCP, UPnP
-
Port-mapping binds specific LAN ports and PVCs for differential services
-
Annex M allows for doubling the upstream data rate to 3.5Mbps
-
Auto-reconnect keeps you online indefinitely
ADSL Features
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt)
ITU-T G.992.2 (G.lite)
ITU-T G.994.1 (G.hs)
ITU-T G.992.3 (G.lite.bis)
ITU-T G.992.5
Max 6 kilometers
Data Rates
Downstream: Up to 24Mbps
Upstream: Up to 3.5Mbps (With Annex M enabled)
ATM Features
UNI 3.1,ATM Adaptation Layer Type 5-AAL5
Multiprotocol encapsulation over ATM (RFC 1483)
UBR, CBR, VBR-rt, VBR-nrt
Supports 8PVCs
PPP Features
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC 2516)
Switching Features
IGMP snooping
IGMP multicast
IEEE 802.1d transparent learning bridging
Routing Features
Classical IP and ARP over ATM (RFC 1577/2225), MER, RIP V1/V2
Static Routing, IP, TCP, UDP, ARP
NAT, NAPT, DNS, DDNS, DHCP Server
UPnP, Virtual Server, DMZ, Port Trigger
SIP, H323 ALG
Wireless Features
Complies with IEEE802.11n, IEEE 802.11g, IEEE802.11b
11n: Up to 300Mbps(dynamic)
Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication
Provides 64/128bit WEP encryption security and wireless LAN ACL (Access Control List)
Max wireless transmit power: 19dbm
Antenna power: 3dbi
Frequency Range:2.4~2.4835GHz
Security
NAT
IP filterling
MAC filtering
Parental control
IPSec VPN
Support up to 10 IPSec VPN tunnels
VPN Pass Through
IPSec/PPTP/L2TP Pass-through
QoS
IP Type of service(ToS)
802.1p
Device Management
HTTP, Console
Administration and operation software (firmware) upgradable locally by web(HTTP), console(TFTP)
CWMP(TR-069)
Hardware Specification

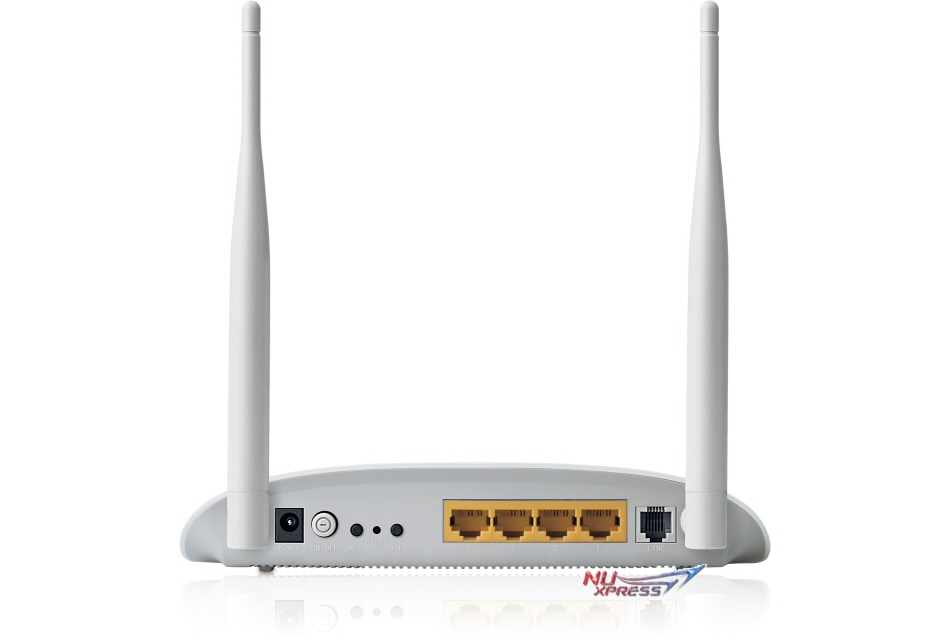

Ports
4 10/100M LAN Ports(RJ45)
1 Line Port(RJ11)
LED Indicators
Power, Internet, ADSL, WLAN, LAN1~4,QSS
Dimensions (W*D*H)
7.9*5.5*1.1 in.(200*140*28 mm)
Environment
Operating Temperature: 0oC~40oC (32oF~104oF)
Storage Temperature: -40oC~70 oC(-40oF~158oF)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
