SPECIFICHE

Processore
Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor in the LGA1156 package

Chipset
Intel® P55 Express Chipset
iTE IT8720
Realtek ALC889 codec
Supports 2 / 4 / 6 / 8 channel audio

Memoria
Support for Extreme Memory Profile (XMP) memory modules
Support for non-ECC memory modules
Dual channel memory architecture
DDR3: 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
DDR3 2200/1600/1333/1066/800 MHz

LAN
1 x RTL8111D chip (10/100/1000 Mbit)

Connettori Interni I/O
1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector
1 x CD in
1 x clearing CMOS jumper
1 x COM
1 x CPU fan connector
1 x floppy disk drive connector
1 x front audio header
1 x front panel connector
1 x IDE
1 x IEEE 1394a
1 x parallel port header
1 x PCH chip fan header
1 x power fan connector
1 x SPDIF in
1 x SPDIF out
2 x SATA 6Gb/s
2 x system fan headers
2 x USB 2.0/1.1
6 x SATA 3Gb/s

Slot di Espansione
1 x PCI Express x16 slot, running at x16
1 x PCI Express x16 slot, running at x8
2 x PCI
3 x PCI Express x1

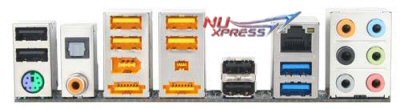

Pannello Posteriore I/O
2 x USB 3.0
1 x PS/2 keyboard or PS/2 mouse port
1 x RJ45 LAN
1 x SPDIF out (coaxial)
1 x SPDIF out (optical)
2 x eSATA 3Gb/s
2 x IEEE 1394a
6 x audio ports (Line In / Line Out / MIC In / Surround Speaker Out(Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
8 x USB 2.0/1.1

Fattore di Forma
ATX 305mm x 244mm

Monitoraggio H/W
CPU overheating warning
CPU/System fan speed control
CPU/System temperature detection
CPU/System/Power fan failure warning
CPU/System/Power fan speed detection
System voltage detection

BIOS
2 x 16 Mbit flash ROM
Award BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Supports DualBIOS™

Software in Bundle
Norton Internet Security (OEM version)

Operating System
Microsoft® Windows® 7/ Vista/ XP

Altre Caratteristiche
@BIOS™
Auto Green
Download Center
eXtreme Hard Drive
Q-Flash™
Support for Dynamic Energy Saver™ 2
Support for Q-Share
Support for Smart 6™
Supports EasyTune
Xpress™ BIOS rescue
Xpress™ Install
Xpress™ Recovery 2
