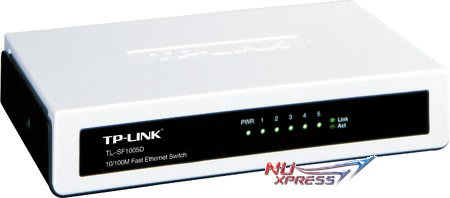

TP-LINK Switch 5 porte 10/100M |
SPECIFICHE
|
| |
|
|
Standards and Protocols: | IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP | |
Basic Function: | Wire-speed Performance, MAC Address Auto-Learning and Auto-aging, IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |
Backbound Bandwidth: | 1Gbps | |
MAC Address Table: | 1k | |
Forwarding Rate: | 10BASE-T 14880pps/port 100BASE-TX 148800pps/port | |
Transmission Method: | Store-and-Forward | |
Ports: | 5 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) | |
Network Media: | 10Base-T UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100Base-Tx UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) | |
LED Indicators: | Power, Link/Act (1, 2, 3, 4, 5) | |
Safety & Emission: | FCC, CE | |
Dimensions (W*D*H): | 5.5*3.4*1.1 in. (140*87*27.5 mm) | |
Environment: | Operating Temperature 0℃~40℃ Storage Temperature -40℃~70℃ Operating Humidity 10%~90% non-condensing Storage Humidity 5%~90% non-condensing | |
Power: | External Power Adapter |
|
|
|
|
|
|
|
|
|
| |
|
|
