SPECIFICHE

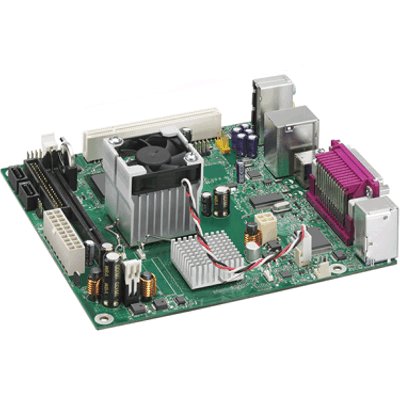

Formato: Mini-ITX / micro-ATX compatible (171.45 × 171.45 mm)
Processore: Integrated Intel® Atom™ processor 1,6 GHz with a 533 MHz system bus
Memoria:
One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 533 / 667 MHz DIMMs
Support for up to 2 GB of system memory
Chipset: Intel® 945GC and ICH7
Audio: Intel® High Definition Audio subsystem in the following configuration: Realtek* ALC662 audio code (2+2 channel HD audio)
Video: Intel® Graphics Media Accelerator 950
I/O: SMSC* LPC47M997 based Legacy I/O controller for serial, parallel, and PS/2* ports
Supporto LAN: 10/100 Mbits/sec LAN subsystem using the Realtek* LAN adapter device
Interfacce:
Six USB 2.0 ports
Two SATA ports (3.0 GB/s)
One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
One serial port
One parallel port
PS/2* keyboard and mouse ports
Possibilità di espansione: One PCI Conventional* bus connector
